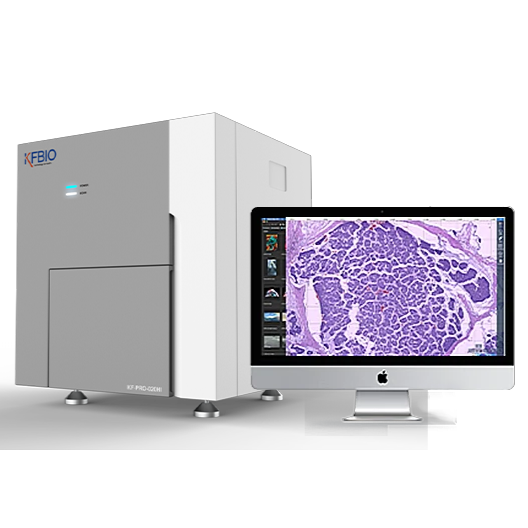

About KF-PRO-002
Digital Pathology 2 Slides Scanner
Fast, Stable, Clearr
Bright-fieldr
Clinic, frozen section, education, telepathology
Lightning Fast Speed
15mm*15mm, 20x, 25s only
Support 400 slides scanning one time
Quiet and Stable Scanning
Magnetic suspension motor drive
99.85% slides scanned successfully
High Fidelity
High resolution 0.25 um/pixel (20X),
0.125um/pixel (40X) WSI scanning
High Precision
50nm positioning accuracy
Support 80x magnification
High Compatibility
Support bright-field and fluorescence
Support different image format
Professional Services
Customize products within a short time
Provide in-time technical
and after-sales services
Digital Pathology Slide Scanner
| Capacity | 5 | 20 | 40 | 120 | 400 |
|---|---|---|---|---|---|
| Scanning Speed (20X, 15mm*15mm) | 25s | 25s | 25s | 15s | 15s |
| Scanning Speed (40X, 15mm*15mm) | 90s | 40s | 40s | 40s | 40s |
| Resolution | ≤0.25 um / pixel (20X) ≤0.125um / pixel (40X) | ||||
| Magnification | 20X / 40X | ||||
| Objective | 20X, NA 0.8; 40X, NA 0.95 | ||||
| Image Format | KFB / TIFF / SVS | ||||
| Acceptable Slides | 1 inch×3 inch / 2 inch×3 inch | ||||
| Scanning Mode | Line Scanning | ||||
| Movement Control | Magnetic linear control | ||||
| Positional Accuracy | 20nm | ||||
| Focus Mode | automatic / manual | ||||
| Label Identification | Linear code / QR code | ||||
| REF No. | 301012 | 301023 | 301282 | 301272 | 301124 |
| AI Identification |  | | | | |
| Accurate Identification | | | | | |
| Fluorescence Update | | | | | |
| Multi Level Fusion Scanning | | | | | |
| Loading capacity | 1200 slides at one time |
| Servo infinite loading | 24/7 unlimited loading mode |
| Staining rack compatibility | Direct placement of standard staining racks |
| Objective lens | 20X NA 0.8, 40X NA 0.95: 4X 10X, 20X, 40X, 60X, 100X for different objective lenses |
| Scanning throughput | 200 slides/hour, 4800 slides/day |
| Operating mode | Dual-core scanning |
| Archiving method | Intelligent archiving output |
| Image resolution | Bright field: 20X ≤ 0.35um/pixel; 40X ≤ 0.175um/pixel; Fluorescence: 20X ≤ 0.325um/pixel; 40X ≤ 0.163um/pixel; |
| Platform drive | Three-axis high-precision scanning platform |
| Fluorescence scanning mode | Matrix-based fluorescence scanning unit 10mm x 10mm: 3-color ≤ 6 mins; 6-color ≤ 12 mins |
| Fluorescence configuration | 7-channel electric filter wheel, DAPI, Orange, Green; up to 8 channels |
| Workstation configuration | Processor: Intel(R) Xeon(R) W2265 CPU @12C/3.5GHz/4.8GHz Hard Drive: 512GB SSD + 8TB HDD Memory: 64GB; Graphics Card: NVIDIA RTX A2000 |
| Monitor configuration | 32-inch pathology monitor, 4K or higher |
 | |

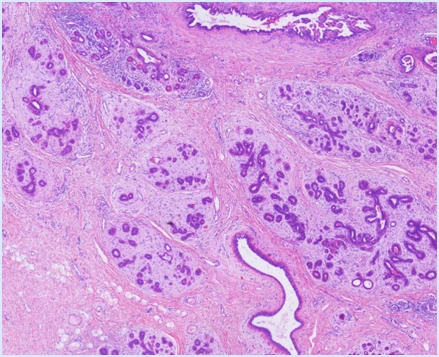

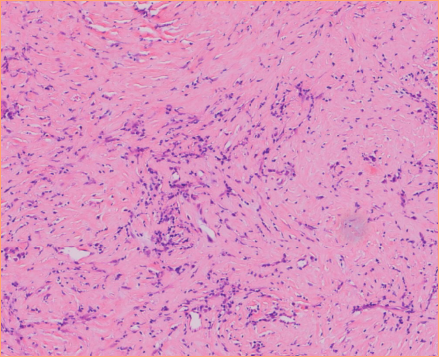

High Image Quality for Digital Pathology
KFBIO Digital Pathology Slide Scanner is a world leader in the accuracy of movement, focus, and image processing, and its accurate whole slide imaging not only meets the requirements of digital slide viewing and operation but is also suitable for AI-assisted image analysis.
High Quality, 3 Colors Independent Processing
K-SCP color processing method helps restore the original color, saturation, color temperature, color contrast and other indicators to enhance images, as well as color compensation of different displays after imaging.
High Resolution, 0.5µm/pixel (20X), 0.25µm/pixel (40X)
It adopts top optical accessories. The light source, objective lens, camera, optical path and other accessories are comprehensively optimized. It greatly improves the optical resolution to directly observe the structure and details in the cell. The nucleus edge is sharp and the internal structure is clearly visible. The resolution distance can be as small as 0.125µm.
High Precision, 20nm Fine Control, 80x magnification
Linear magnetic axis drive and grating ruler positioning mechanism are adopted to achieve ultra-high precision of image movement control and image positioning at the nanometer level. It helps sample fast and accurately to achieve stable imaging for a longer period of time. The magnification can reach 80x.
Information Leaflet Download:
K-Viewer Download:
K-Viewer, a slide viewing software developed by KFBIO, allows pathologists to review and annotate digital slides for ease of diagnosis. It enables pathologists to swiftly access slides or cases on the desktop or remotely via the computer, smartphone, or tablet device.
To have the most satisfying experience in viewing slides,
please choose the different version of K-Viewer to download.
K-Viewer(1.5.3.1) for windows xp、7、8、10
K-Viewer(1.7.0.29) for 64-bit operating system of windows 7、8、10 (support fluorescence slides)
K-Viewer(1.0.2) MAC for macOS
Other Products
KF-FL-005
Digital Pathology 5
Slides Scanner fluorescence
Fast, High-precision,Stable, Clear
Scientific research, clinic,
tumor micro environment

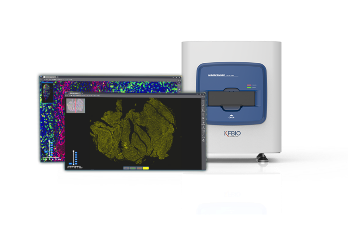

KF-FL-120
Digital Pathology 120
Slides Scanner fluorescence
High-throughput, Fast, Stable,
Continuous scanning
Scientific research, clinic,
drug target validation

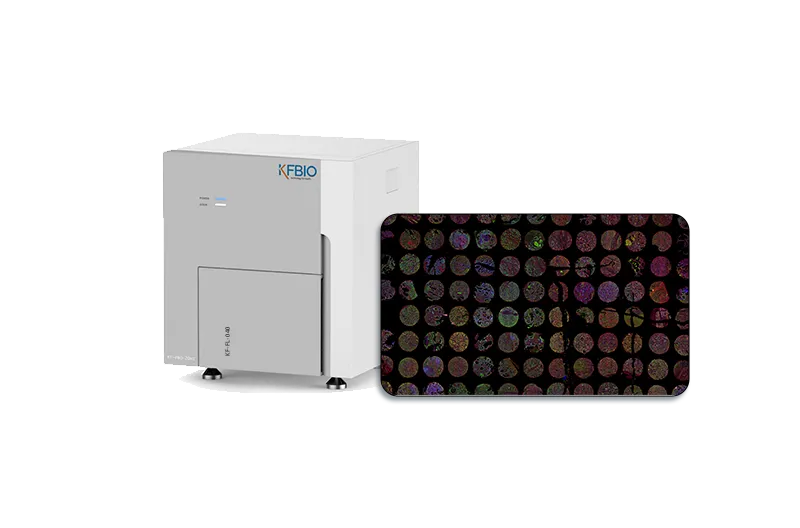

KF-FL-400
Digital Pathology 400
Slides Scanner fluorescence
High-throughput, Fast, Stable,
Continuous scanning
Scientific research, clinic,
FISH analysis, molecular typing
Knowledge Pathway
Learn more about Digital Pathology Slide Scanner
Other Products
KF-PRO-005
Digital Pathology 5 Slides Scanner
Fast, Stable, Clear
Bright-field & Fluorescence
Clinic, frozen section, education, telepathology
KF-PRO-020
Digital Pathology 20 Slides Scanner
Accurate, Fast, Excellent
Bright-field
Clinic, frozen section, education, telepathology

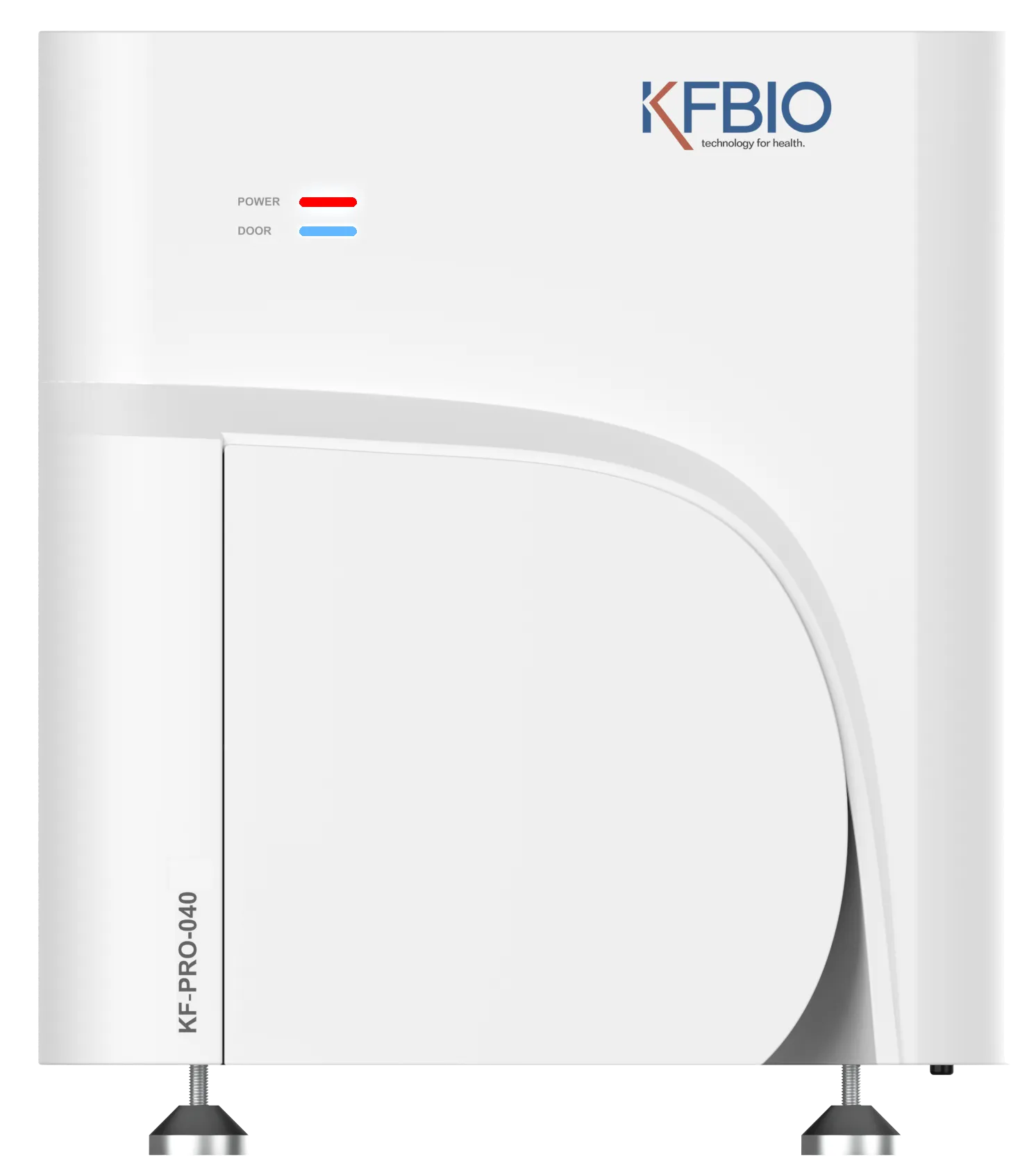

KF-PRO-040
Digital Pathology 40 Slides Scanner
Fast, Precise, Efficient
Bright-field
Clinic, training, remote consultation
KF-PRO-120
Digital Pathology 120 Slides Scanner
High-throughput, Fast, Stable
Bright-field & Fluorescence
Clinic, scientific research, interactive training
KF-PRO-400
Digital Pathology 400 Slides Scanner
High-throughput, Fast, Stable, Automatic
Bright-field & Fluorescence
Clinic, education, telepathology, scientific research
KF-PRX-1200
Ultra-High Throughput
Digital Pathology Slide Scanner
Fast, Precise, Efficient
Bright-field
Clinic, training, remote consultation
KF-SLP-200
Paraffin Rotary Microtome
Efficient, Precise, Safe, Ergonomics
Clinic, research, education
KF-SLP-300
Paraffin Rotary Microtome
Efficient, Precise, Safe, Ergonomics
Clinic, research, education

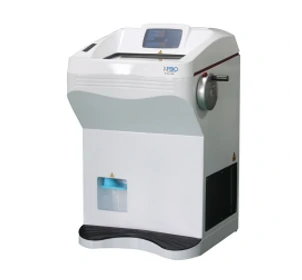

KF-SLF-200
Freezing Microtome
Efficient, Quality, Safe, Precise
ApplicationScenarios: Intraoperative frozen section,
clinic, research, education

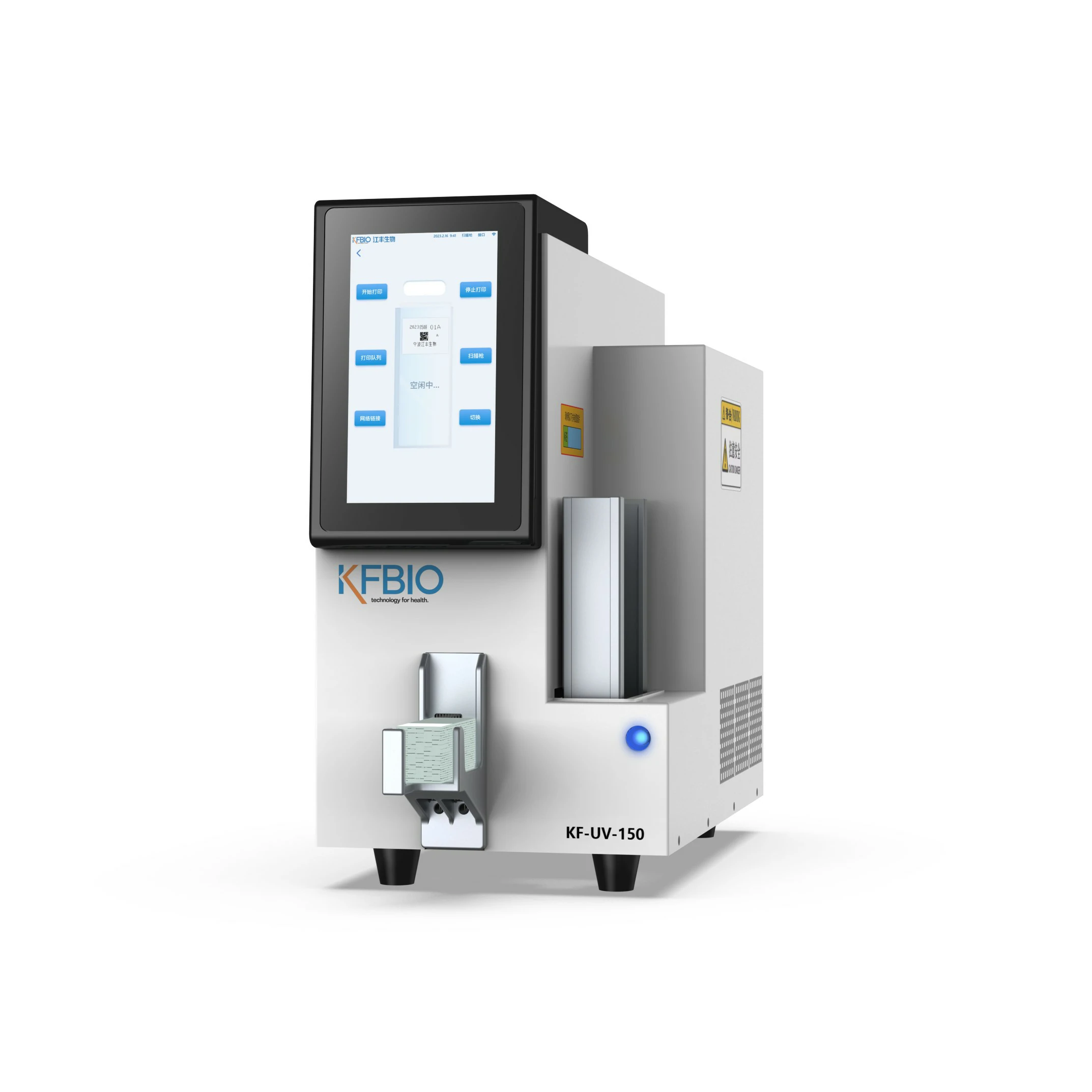

KF-UV-150
Slide Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research

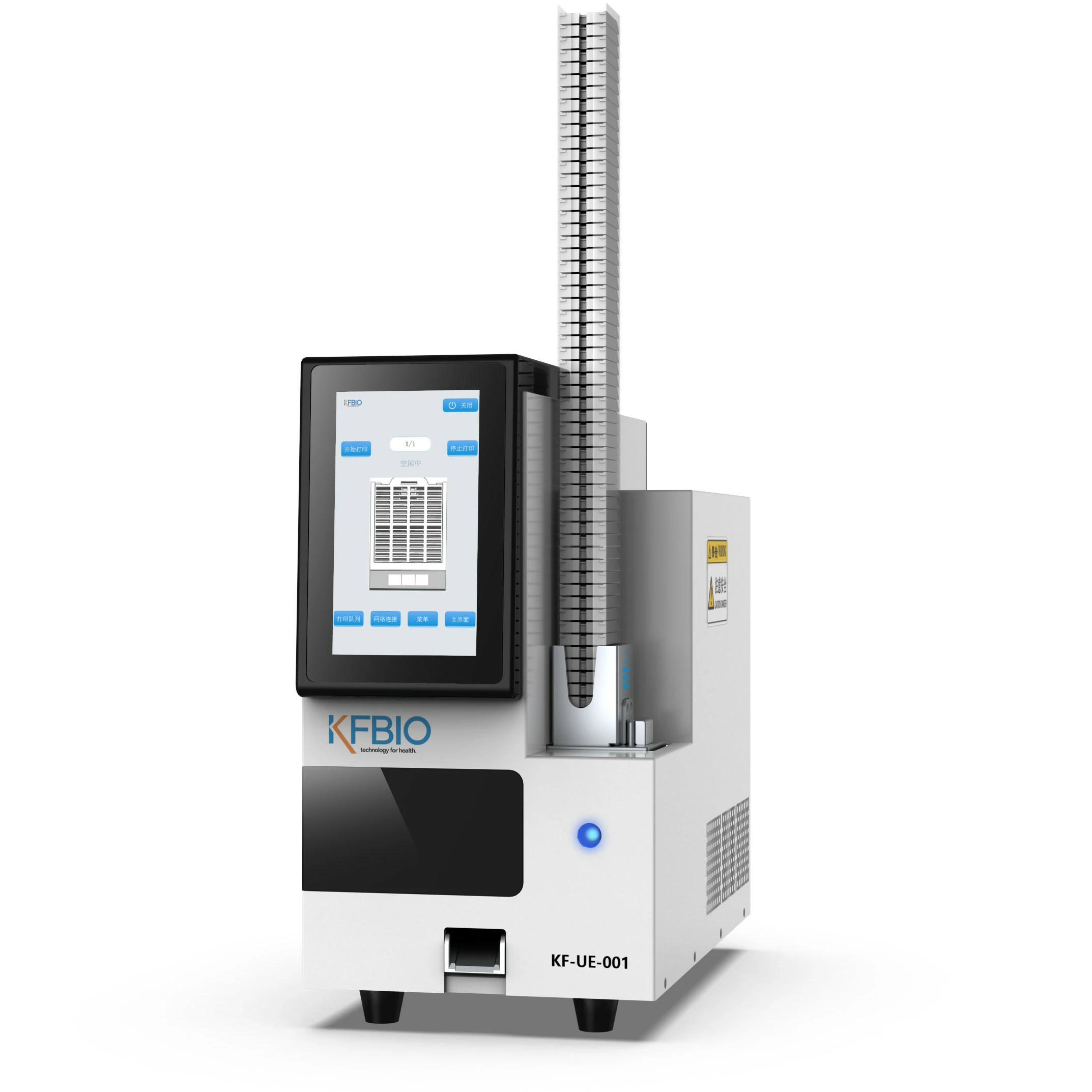

KF-UE-001
Cassette Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research

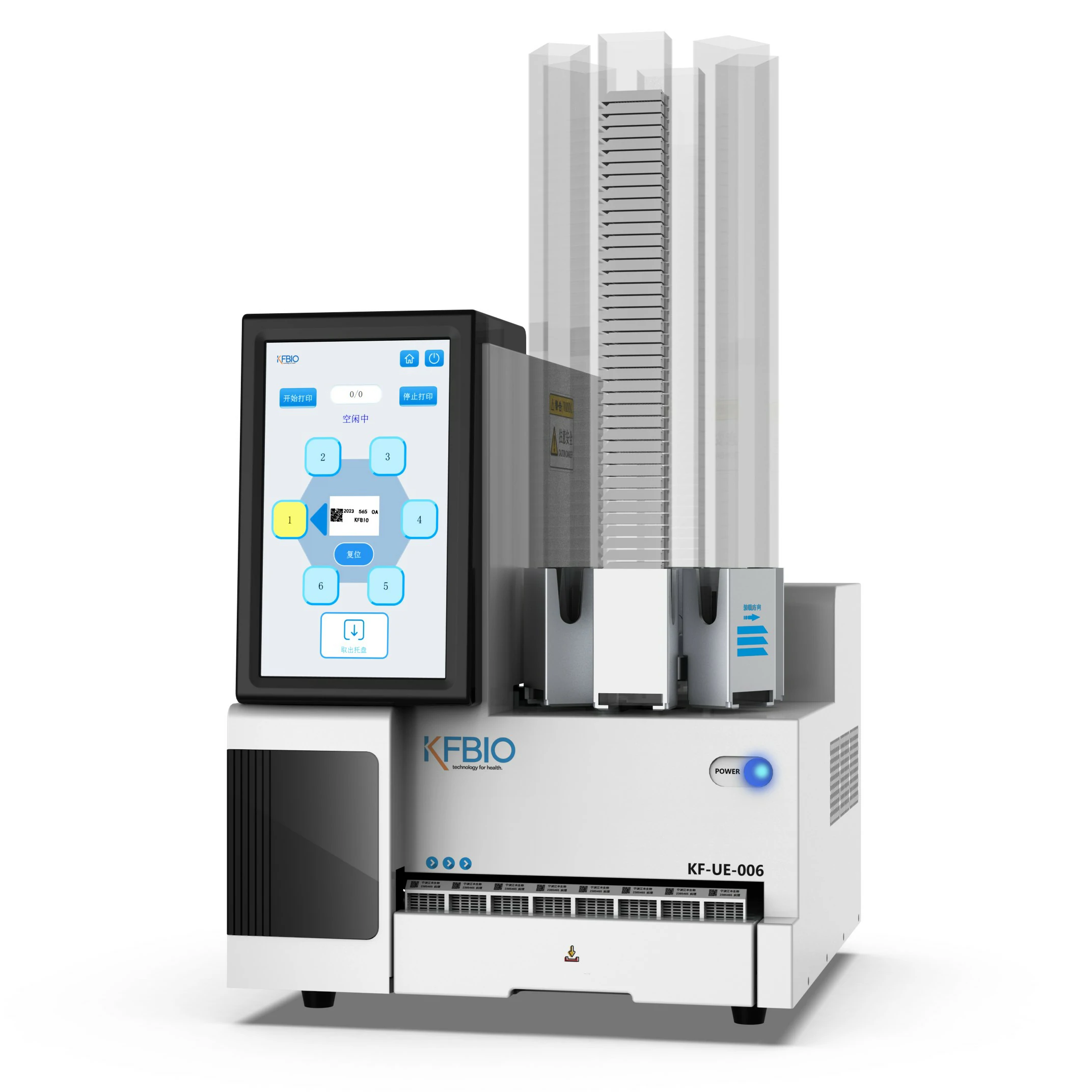

KF-UE-006
Cassette Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research

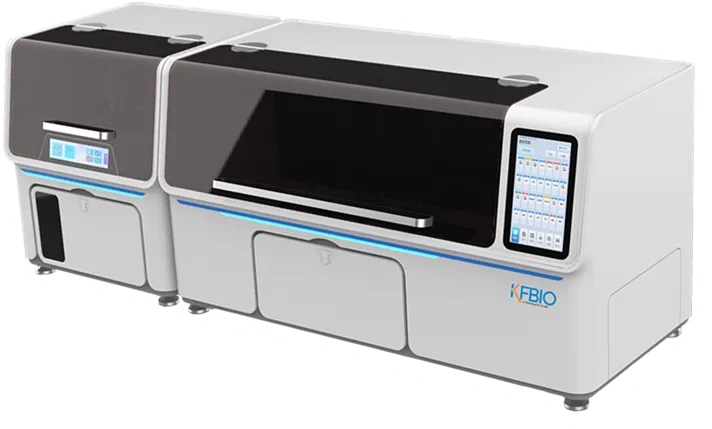

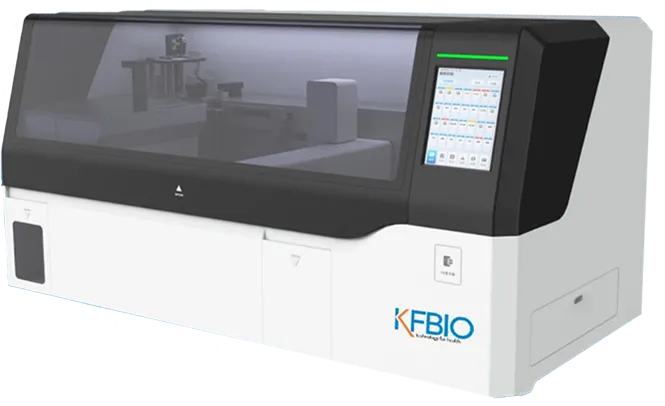

KF-RF-I
Stainer and Coverslipper
Efficient, Reliable, Flexible, Productive
Application Scenarios: clinic, research, education

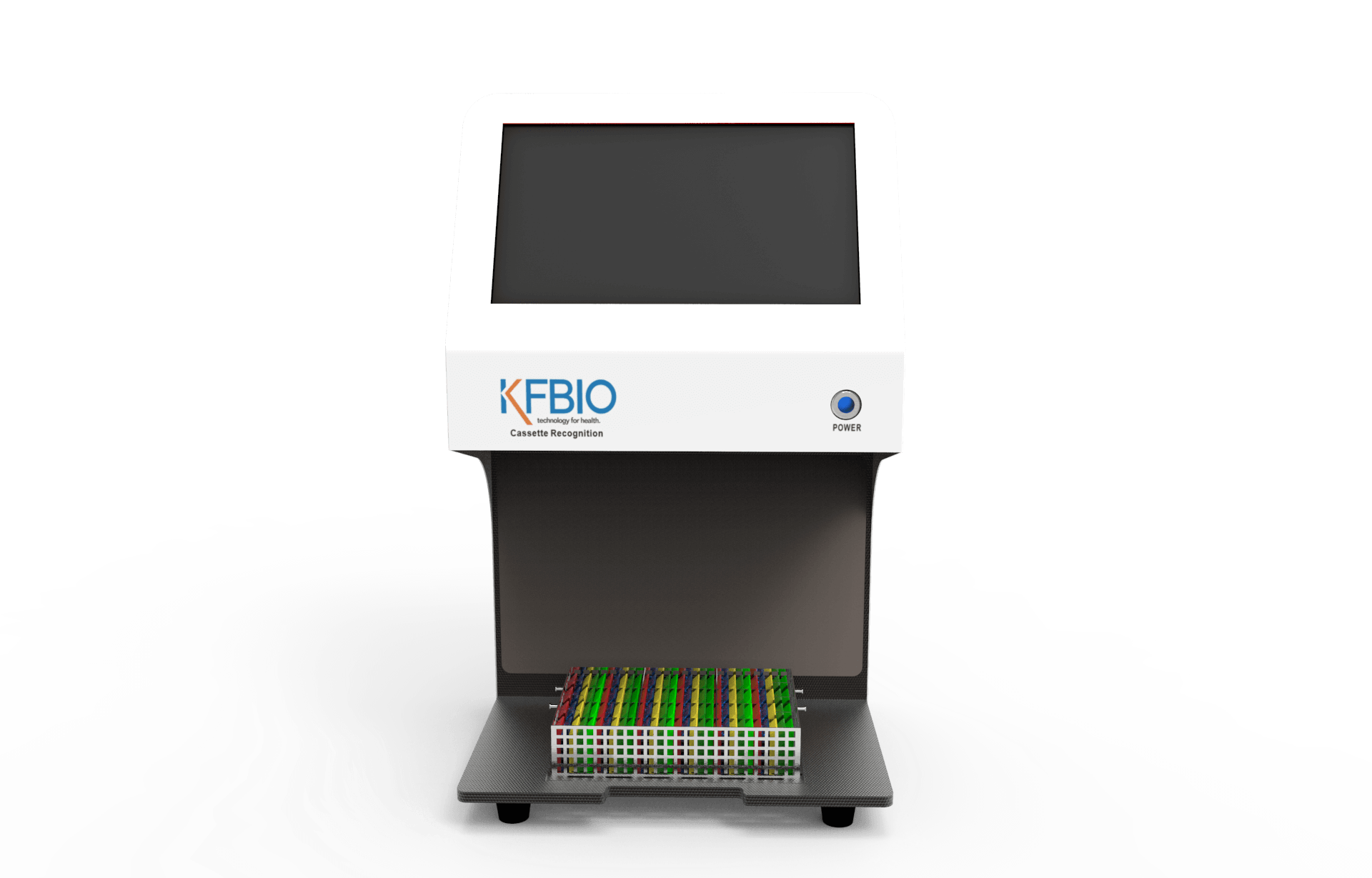

KF-PIMS-ARC-200
