About KF-PRO-002
Digital Pathology 2 Slides Scanner
Fast, Stable, Clearr
Bright-fieldr
Clinic, frozen section, education, telepathology
Top Filter
Minimum spectral band resolution
reaches 10nm
The transmission rate reaches 99%
and the cutoff rate reaches OD6
SCMOS Camera
Active refrigeration SCMOS
fluorescence camera
Low signal-to-noise ratio,
high resolution
Original Light Source Lighting
Design
Specific spectral band LED light
source excitation
Prevent cross-color efficiently
Original Preview Shooting
Technique
20nm positioning accuracy
Support 80x magnification
Flexible Configuration
Automated identification of scan areas
Shorten scanning time
Professional Services
Removable color filter
Easy to maintain
KF-RF Series Stainner and Coverslipper Technical Specificaiton
| Name | KF-RF-I | KF-RF-II | KF-RF-III | KF-RF-V |
| Stainner | ||||
| Throughput | 100 Slides per Hour | 200 Slides per Hour | 300 Slides per Hour | 600 Slides per Hour |
| Rack Slides Capacity | 8 | 30 | 30 | 30 |
| Macroslide Rack Available | No | Yes | Yes | Yes |
| Total Number of Stations | 24 | 27 | 30 | 35 |
| Total Number of Reagent Stations | 16 | 20 | 21-23 (Standard: 21; expandable up to 23) | 23-27 (Standard: 23; expandable up to 27) |
| Volume of Reagent Container(ml) | 160 | 450 | 450 | 750±50, Can Replace with 450 |
| Total Number of Washing Stations | 4 | 4 | 4 | 4 |
| Total Number of Regent Heating Stations | 4 | 4 | 4 | 2-6 (Standard: 2; expandable up to 6) |
| Drying Oven Stations | 2 | 1 | 1 | 2 |
| Stations in Input and Output Drawer | 1 | 1 | 3 | 6 |
| Loading Capacity | 8 slides | 30 slides | 30 slides * 2 | 30 slides * 10 |
| In Staining Rack Capacity | 10 | 10 | 12 | 22 |
| Reagent Heating Station Temperature Range | 0℃~60℃ | 0℃~60℃ | 0℃~60℃ | 0℃~60℃ |
| Reagent Heating Temperature Control Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Maxium Program Storage Number | 24 | 24 | 24 | 24 |
| Program Steps | Up to 54 | Up to 54 | Up to 54 | Up to 54 |
| Certifications | CE-IVDR | CE-IVDR | CE-IVDR | CE-IVDR |
| Monitor Size | 7 inch | 11.6 inch | 11.6 inch | 12 inch |
| Voice Reminder | Yes | Yes | Yes | Yes |
| Coverslipper | ||||
| Integration Type | Inside | Inside | Inside | Inside |
| Cover glass sizes(mm) | 24*50 | 24*50 | 24*50 | 24*50 |
| Throughput | 200 Slides /Hour | 300 Slides /Hour | 400 Slides /Hour | 600 slides / hour |
| Coverslip Storage Capacity | 200 | 200 | 600 | 800 |
| Unloading Capacity | 8 slides * 2 | 30 slides * 3 | 30 slides * 4 | slides * 12 |
| Defective Coverslip Detection | Automatically identifies and rejects damaged or flawed coverslips | Automatically identifies and rejects damaged or flawed coverslips | Automatically identifies and rejects damaged or flawed coverslips | Automatically identifies and rejects damaged or flawed coverslips |
| Empty Coverslip Detection | Monitors real-time coverslip availability | Monitors real-time coverslip availability | Monitors real-time coverslip availability | Monitors real-time coverslip availability |
| Low Inventory Pre-Alert | Triggers a warning before coverslips are fully depleted to ensure uninterrupted operation. | Triggers a warning before coverslips are fully depleted to ensure uninterrupted operation. | Triggers a warning before coverslips are fully depleted to ensure uninterrupted operation. | Triggers a warning before coverslips are fully depleted to ensure uninterrupted operation. |
| Output rack capacity | 16 | 90 | 120 | 360 |
| Monitor Size | / | / | 8.8 inch | 8.8 inch |
| DIMENSIONS & WEIGHT & POWER | ||||
| Dimension (W x L x H) | 920mm x 530mm x 550mm | 1270mm x 590mm x 760mm | 1528mm x 625mm x 705mm | 1903mm x 715mm x 695mm |
| Weight | 100kg | 130kg | 165kg | 205kg |
| Air Freight Crate Dimension (W x L x H) | 1040mm*710mm*810mm | 1390mm*710mm*940mm | 1710mm*720mm*965mm | 2090mm*820mm*970mm |
| Air Freight Crate Weight | 140kg | 180kg | 235kg | 285kg |
| Ocean Freight Wooden Crate Dimensions (W x L x H) | 1030mm*690mm*720mm | 1400mm*730mm*850mm | 1730mm*740mm*875mm | 2110mm*840mm*880mm |
| Ocean Freight Wooden Crate Weight | 120kg | 160kg | 210kg | 250kg |
| Power Supply Voltage Range | 100–240V AC, 50/60Hz | |||
| Power Socket Type | Type A、Type C、 Type D、Type E/F、Type G、Type I、Type J、Type L、Type M | |||
| Rated Power | 150VA | 200VA | 200VA | 200VA |
Cryostat Parameter
| Product | KF-SLF-200 Cryostat |
| Chamber Temperature | -10-40°C |
| The Section Thickness Adjusting Range | 1-100μm |
| Section Thickness Setting Options | 1-20μm,increment 1μm 20-40μm,increment 2μm 40-100μm,increment 5μm |
| Trimming Section Thickness Adjusting Range | 10-400μm |
| Trimming Section Thickness Setting Options | 10-50μm,increment 5μm 50-100μm,increment 10μm 100-400μm,increment 50μm |
| Maximum Specimen Size | 50mm x 75mm |
| Specimen Vertical Stroke | 60mm |
| Specimen Horizontal Stroke | 20mm |
| The Specimen Retraction Value Adjusting Range | 0μm-100μm |
| Lowest Temperature of the Freezing Shelf | -45°C |
| Number of Cooling Holes in Freezing Shelf | 26 |
| Number of Quick Freezing Spot | 2, down to -60°C |
| Working Voltage | AC220V+10% 50Hz |
| Power | 600W |
 | |
Gross Imaging System Parameter
| Photo box dimensions(L*W*H) | 272*212*102(mm) | Recording | Support |
| lmaging pixels | 20M | lllumination | Supports illumination, adjustable brightness |
| Autofocus | Support | Measurement | Set benchmarks, support straight line.polyline, rectangle, and circle measurements |
| Digital zoom | Support | Annotation | Support for text, marks, etc. |
| Stand | Adjustable height≥30 cm,capable of 360° rotation | lmage Processing | Exposure (manual/automatic), white balance(manual/automatic), gain(manual/automatic)zoom in/out, brightness, saturation, contrast. |
| Working distance | ≥10cm | System Integration | Integration with pathology departmentmanagement system |
| Take photos | Support | Foot pedal control | Supports foot pedal control for taking photos,focusing, and illumination. |
| Video recording | Support | Scale plate | Support |

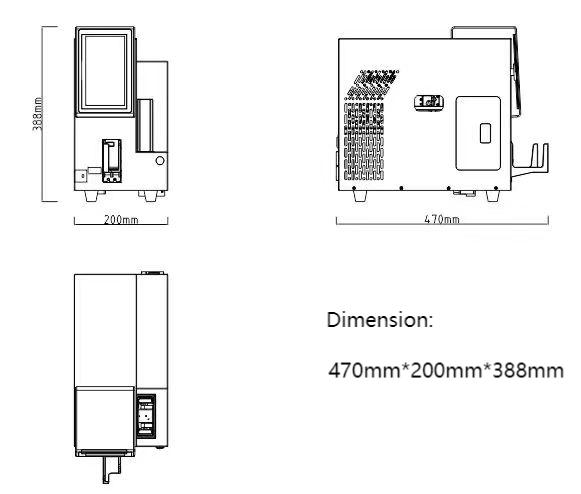

Slide Laser Printer Parameter
| Product | KF-UV-150 Slide Laser Printer |
| Printing technology | Non-contact laser marking technology |
| Print content | Alphanumeric, characters in various languages, barcodes, patterns |
| Slide holder capacity | ≥150 slides |
| Slide output bin capacity | 25 slides(With extra collection device: 150 slides) |
| Slide printer speed | ≤3s / slide |
| Printing Accuracy | ≥2500dpi |
| Screen Size | 7 inchs |
| Consumable ltems | 5x75mm,1-1.2mm standard glass slide |
| Power | 100-240ACV 50/60HZ |
| Easy for Maintaining | Maintain without disassembling |
| System Interface | Integrate with LIS/HlS/PlS |
| Printing Methods | Print online or off-line |
| External Device | Support barcode scanner inputting |
| Dimensions (W×D×H) | 200 × 470 × 388 mm |
| Weight | Approx. 15 kg |

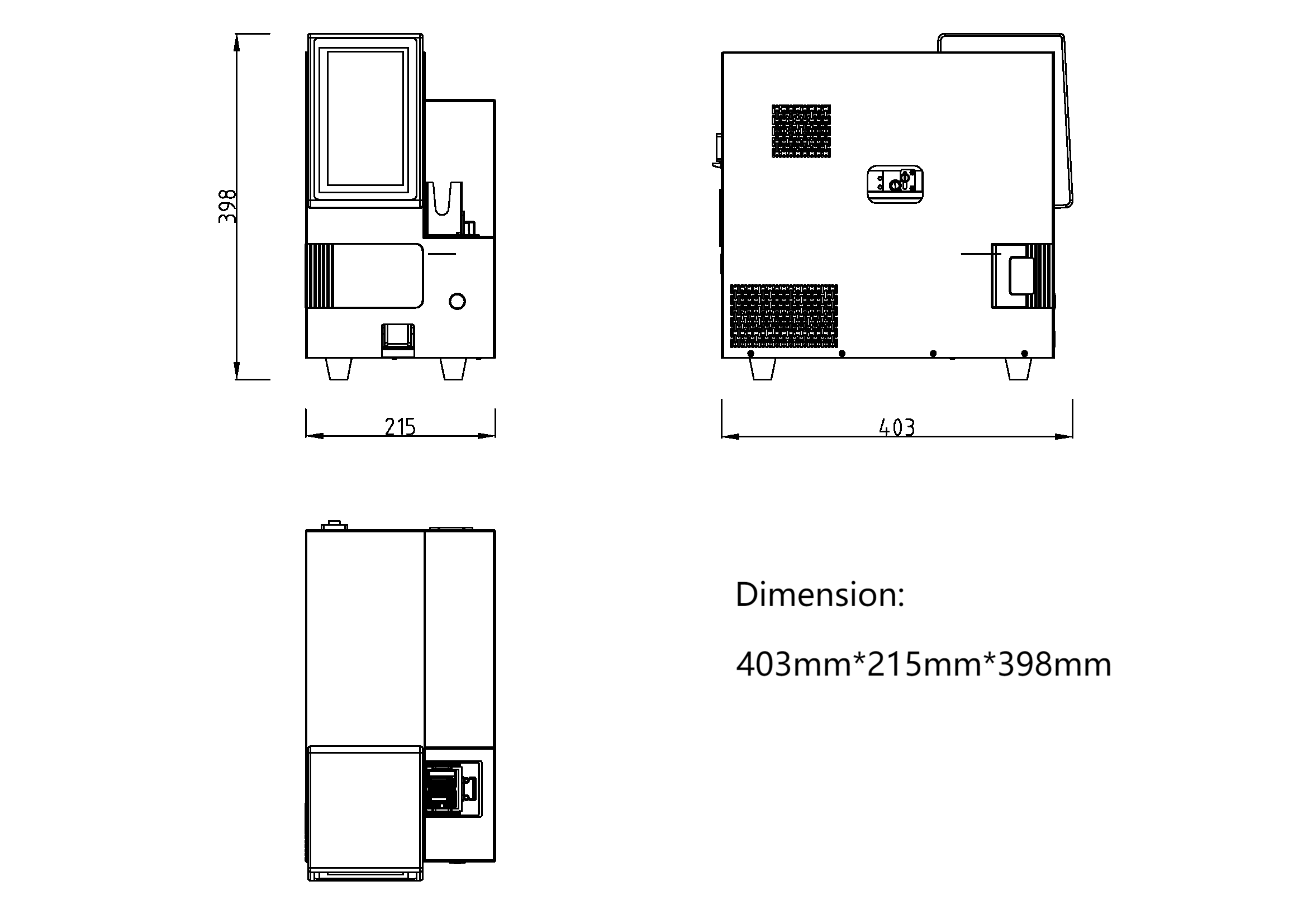

Cassette Laser Printer Parameter
| Product | KF-UE-001 Cassette Laser Printer |
| Printing technology | Non-contact laser marking technology |
| Print content | Alphanumeric, characters in various languages, barcodes, patterns |
| Cassette hopper capacity | ≥75 cassettes |
| Printing speed | ≤3s / cassette |
| Printing Accuracy | ≥2500dpi |
| Screen Size | 7 inchs |
| Consumable ltems | Suitable for cassettes with close lid and cassettes without lid |
| Power | 100-240ACV 50/60HZ |
| Easy for Maintaining | Maintain without disassembling |
| System Interface | Integrate with LIS/HlS/PlS |
| Printing Methods | Print online or off-line |
| External Device | Support barcode scanner inputting |
| Dimensions (W×D×H) | 215 × 403 × 398 mm |
| Weight | Approx. 15 kg |

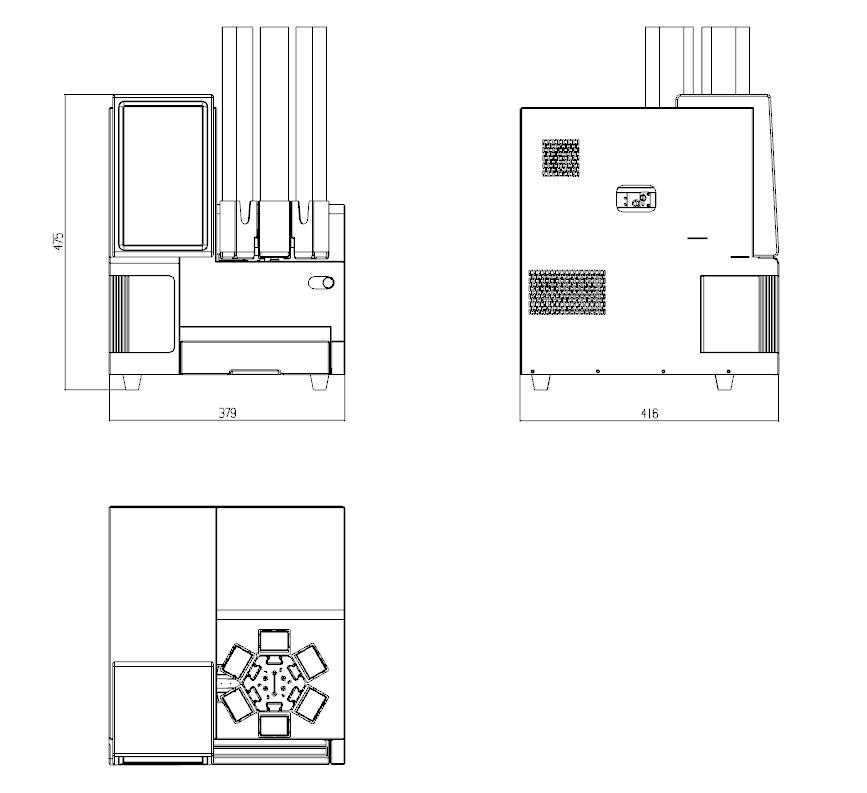

UV Cassette Laser Printer Parameter
| Product | KF-UE-006 Cassette Laser Printer |
| Printing technology | Non-contact laser marking technology |
| Print content | Alphanumeric, characters in various languages, barcodes, patterns |
| Cassette hopper capacity | ≥75*6 cassettes |
| Printing speed | ≥ 15cassettes/min |
| Printing Accuracy | ≥2500dpi |
| Screen Size | 10 inchs |
| Consumable ltems | Suitable for cassettes with close lid and cassettes without lid |
| Power | 100-240ACV 50/60HZ |
| Printer interfacee | Network port, USB, no need to connect computer, iPad or phone |
| Easy for Maintaining | Maintain without disassembling |
| System Interface | Integrate with LIS/HlS/PlS |
| Printing Methods | Print online or off-line |
| External Device | Support barcode scanner inputting |
| Dimensions (W×D×H) | 379 × 416 × 475 mm |
| Weight | Approx. 15 kg |
Cassette Recognition System
| Dimension(mm) | 383*341*639 |
| Weight | 21kg |
| Power | 100-240V 50/60HZ |
| One-time identification quantity | 200 |
| Recognition Time | ≤5s |
| Read success rate | ≥99.99% |
| Temperature | 0℃ ~ +50℃ |
| Working Humidity | ≤90% |
| Support Code | Bar code, QR code, OCR identification |
| Recognation Field of View(mm) | 210*190 |
| Screen Size | 14 inches |
| Embedded Communication Interface | USB 3.0 Hi-Speed (USB-CDC, USB-HID) |
Slide Recognition System
| Dimension(mm) | 383*326*619 |
| Weight | 21kg |
| Power | 100-240V 50/60HZ |
| One-time identification quantity | 20 |
| Recognition Time | ≤1.5s |
| Read success rate | ≥99.99% |
| Temperature | 0℃ ~ +50℃ |
| Working Humidity | ≤90% |
| Support Code | Bar code, QR code, OCR identification |
| Recognation Field of View(mm) | 210*190 |
| Screen Size | 14 inches |
| Embedded Communication Interface | USB 3.0 Hi-Speed (USB-CDC, USB-HID) |
Pathologist (Zhongda Hospital Southeast University):
KFBIO Paraffin Rotary Microtome can cut slices with uniform thickness, which is highly precise, easy to operate.
Pathology department (Shanghai Changzheng Hospital):
KFBIO Paraffin Rotary Microtome is high-qualified, durable and safe to use.
Manager (Huayin Health):
KFBIO provides the technical support and post-sales service, and the Paraffin Rotary Microtome is smooth to use.
Pathology department (Zhejiang Provincial Cancer Hospital):
The routine pathological device has good slice quality without blade jumping and staining.
Director (Dian Diagnostics):
The slicing process is highly efficient because samples can be fast pruned and waste can be cleaned within 3s.
The pathologist (the First Afflicted Hospital of Zhengzhou University):
The Paraffin Rotary Microtome is easy to use and the guide rail can be adjusted, which is very labor-saving.
Laser Printing
Suitable for various materials
No damage to the cassettes and slides
Delicate and permanent print quality with no wear or fadingFast speed: 3 seconds per unit; 20 cassettes or slides per minute
No maintenance required
No preheating needed; ready to use when powered onNo consumables needed
Loading optimiztion: Anti-tilt Design for Cassettes
Flat, extended push rod for smooth andlevel dropping, preventing jamming.
Dedusting Method
Equipped with professional dedustingdevice and replaceable filter cartridge torealize dust and odor elimination
Filtration system:
1. Antibacterial layer2.HEPA
3.Activated carbon fiber
4. High iodine value
activated carbon
Convenient operation
Module Edit: Users can modify the print template content
Automatic Printing: Add data and each interface obtains data to realize automatic printing
Real-time Preview: Support real-time information display, and you can cancel or pause printing
Records: Support data track to check previous contents, time, and operators
Laser Printing
Suitable for various materials
No damage to the cassettes and slides
Delicate and permanent print quality with no wear or fadingFast speed: 3 seconds per unit; 20 cassettes or slides per minute
No maintenance required
No preheating needed; ready to use when powered onNo consumables needed
Loading optimiztion: Anti-tilt Design for Cassettes
Flat, extended push rod for smooth andlevel dropping, preventing jamming.
Dedusting Method
Equipped with professional dedustingdevice and replaceable filter cartridge torealize dust and odor elimination
Filtration system:
1. Antibacterial layer2.HEPA
3.Activated carbon fiber
4. High iodine value
activated carbon
Convenient operation
Module Edit: Users can modify the print template content
Automatic Printing: Add data and each interface obtains data to realize automatic printing
Real-time Preview: Support real-time information display, and you can cancel or pause printing
Records: Support data track to check previous contents, time, and operators
Laser Printing
Suitable for various materials
No damage to the cassettes and slides
Delicate and permanent print quality with no wear or fadingFast speed: 3 seconds per unit; 20 cassettes or slides per minute
No maintenance required
No preheating needed; ready to use when powered onNo consumables needed
KFBl0 collection method
First-in-first-out collection method, with the first printed slide always atthe top and the printing surface facing outward, which is easier toretrieve.
KFBlO Collection Solution
Solution: Patented Collector
Adjustable height to accommodate different quantities: 1-50/1-25 slides
Dedusting Method
Equipped with professional dedustingdevice and replaceable filter cartridge torealize dust and odor elimination
Filtration system:
1. Antibacterial layer2.HEPA
3.Activated carbon fiber
4. High iodine value
activated carbon
Product Features
1. Cassette Confirmation
Check the cassettes to find out missed cassettes and wrong cassettes and inform the user.
2. Wax Block Check
The batch identification function helps quickly check whether the wax blocks match the embed records and warn the user about the missed wax blocks.
3. Batch Archive
It supports the identification of 200 cassettes one time, and connects to the archiving system to quickly input wax block information for storage and borrowing functions.
Information Leaflet Download:
Other Products
KF-FL-005
Digital Pathology 5
Slides Scanner fluorescence
Fast, High-precision,Stable, Clear
Scientific research, clinic,
tumor micro environment
KF-FL-020
Digital Pathology 20 Slides Scanner (Fluorescence)
Fast, Stable, Clear
Scientific research, clinic, tumor microenvironment
KF-FL-120
Digital Pathology 120
Slides Scanner fluorescence
High-throughput, Fast, Stable,
Continuous scanning
Scientific research, clinic,
drug target validation
KF-FL-400
Digital Pathology 400
Slides Scanner fluorescence
High-throughput, Fast, Stable,
Continuous scanning
Scientific research, clinic,
FISH analysis, molecular typing
Knowledge Pathway
Learn more about Digital Pathology Slide Scanner
Other Products
KF-PRO-005
Digital pathology 5 Slides Scanner (PRO)
Fast, Precise, Efficient
Bright-field & Fluorescence,
Clinic, Research, Education,Remote Consultation, Supports Mega Slide
KF-PRO-020
Digital Pathology 20 Slides Scanner (PRO)
Fast, Precise, Efficient,
Bright-field&Fluorescence,
Clinic, Research, Education, Remote Consultation
KF-PRO-040
Digital Pathology 40 Slides Scanner (PRO)
Fast, Precise, Efficient,
Bright-field, Clinic, Research,
Education, Remote Consultation
KF-PRO-120
Digital Pathology 120 Slides Scanner (PRO)
Fast, Precise, Efficient,
Bright-field&Fluorescence,
Clinic, Research, Education, Remote Consultation
KF-PRO-400
Digital Pathology 400 Slides Scanner (PRO)
Fast, Precise, Efficient,
Bright-field&Fluorescence,
Clinic, Research, Education, Remote Consultation
KF-SLF-200
Freezing Microtome
Efficient, Quality, Safe, Precise
ApplicationScenarios: Intraoperative frozen section,
clinic, research, education
KF-UV-150
Slide Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research
KF-UE-001
Cassette Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research
KF-UE-006
Cassette Laser Printer
High-throughput, Fast, Clear, Durable
Application scenarios: Clinic, industry, research
KF-RF-I
KF-RF-I
Efficient, Reliable, Flexible, Productive
Application Scenarios: clinic, research, education
KF-RF-II
KF-RF-II
Efficient, Reliable, Flexible, Productive
Application Scenarios: clinic, research, education
KF-RF-III
KF-RF-III
Efficient, Reliable, Flexible, Productive
Application Scenarios: clinic, research, education
KF-RF-V
KF-RF-V
Efficient, Reliable, Flexible, Productive
Application Scenarios: clinic, research, education
KF-ARC-300
Efficient identification ,Independent Software System,
User-friendly Design, Strong Compatibility,&Intelligent Verification.
Fast, accurate batch identification of embedding cassettes for efficient and traceable pathology workflows.
KF-ARS-300
Efficient identification ,Independent Software System,
User-friendly Design, Strong Compatibility,&Intelligent Verification.
Fast, accurate batch identification of embedding cassettes for efficient and traceable pathology workflows.
KF-GSC-100
High-definition,Automatic,Durable
Application Scenarios: Clinic, industry,
research
